Nitrogen Compressors

We delivers high-pressure compressors and the complementary modules for purification, storage and filling.

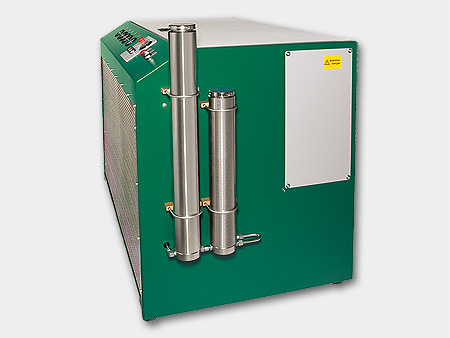

The sturdy design of stationary high pressure compressors for industrial compression of nitrogen provides a maximum operating safety.

Take profit of our know-how in a wide range of applications, e.g. test systems for air bags and brakes, laser cutting systems, gas injection moulding, offshore platforms and many other nitrogen applications.

Our compressors are designed for your individual application with a high degree of expandability according to your requirements.

Applications
Type From To
Inlet pressure atmospheric 25 bar (362 psi)
Delivery capacity 6 m³/h (3,5 cfm) 250 m³/h (147 cfm)
Final pressure 10 bar (140 psi) 420 bar (6100 psi)

We individually calculate compressor and drive power according to your application requirement. In this way, we perform the best possible efficiency and highest economic feasibility for you.

Features
  • Drive motor
  • Powder coated frames (wet painted on request)
  • Sound insulated housing up to 61 dB(A)
  • Star-delta start system
  • Control panel with start-stop switch, emergency stop and condensate test switch
  • Operating hour counter
  • Automatic condensate drain
  • Automatic shut-down when the final pressure is reached
  • Automatic shut-down for different temperatures
  • Various display options and monitoring
  • Gastight inlet filter housing
  • Inlet filters installed in all machines as standard
  • Low-pressure oil pump
  • Pressure maintaining and non return valve
  • High-pressure hoses (various lengths of your choice)
  • Interstage cooling pipes
  • Cooling pipes in stainless steel
  • Water separator after each stage
  • Safety valves after each stage
  • Pistons c/w steel piston rings
  • Hardened cylinders
  • Concentric suction/pressure valves
  • Fill pressures to your choice
  • Mobile compressor control available
  • Stationary filter monitoring
  • Intake pressure regulations
  • Buffer tank up to 25 bar(g) c/w drain valve, pressure gauge and safety valve
  • TÜV certification
